Aperture card scanner
High performance roll film scanning.
|
|
| Resolution | 100-400 dpi |
| Speed (200dpi, A2/ C-Size)* |
370 cards per hour |
| Speed (400dpi, A2/ C-Size)* |
300 cards per hour |
| Hopper-feed |
150 card, automated batch feed |
| Dual-save output |
Greyscale and bitonal |
| Hollerith entry |
Automatic (IBM, MIL STD 804B) |
| Check print capability | Yes |
| Reduction ratio (fixed focus) |
7.5 to 40x (variable) |
| Scaling accuracy | ± 0.5% |
| Film type | Silver and diazo |
| Drawing sizes | User defined within limits of tape window |
| Bitonal output file format | TIFF (G3 od. G4), CALS, PNG, PDF |
| Greyscale output file format | JPEG, BMP, RAW TIFF, PNG, PDF |
| Size (WxDxH) | 170 x 460 x 210 mm |
| Weight | 5.8 kg |
| Power requirements | 110/230V, 270/210mA |
| PC connection |
USB 2.0 Hi-speed 480MHz only |
| Operating system | Windows 10 Prop (64 bit – only with Intel Processor), further alternatives on request |
| Controller PC specification | Please see WWL website for current requirements www.wwl.co.uk |
| * Maximum scanning speed dependent on PC configuration | |
The reference scanner for 16 mm archives
|
|
High performance roll film scanning.
|
|
High performance roll film scanning.
|
|
High performance roll film scanning.

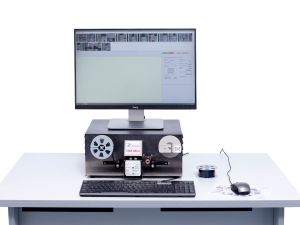

Load and go operation.
An easy film transport path and intuitive software makes loading, scanning and rewinding a simple process.
Quantum software.
The OM Mini uses the Quantum software suite for image capture and processing. QuantumScan offers precise framing technology for accurate front-end capture. QuantumProcess offers extensive editing options to meet the exact image and file specifications needed for output.
External PC.
An included external PC ensures maximum flexibility, efficiency and minimized downtime. For added portability and space economy, the OM Mini is also available with a laptop option.
Stackable.
Boasting the smallest footprint of any production scanner on the market, the space-saving design of the OM Mini allows operators to command multiple scanners at once for increased throughput and greater return on investment without an increase in physical requirements.
Portable.
The OM Mini is ideal for end-users with multiple branches or with projects in different locations. Economically-sized, it can be safely transported commercially or personally in a protective carrying case.

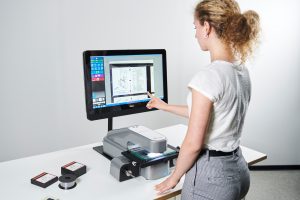

Digital genius – the microfiche scanner with automatic loading system.
|
|

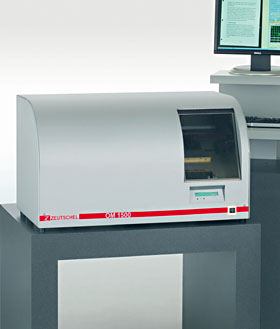

The universal film scanning system
